PanelPro™ HP19 Hoarding Screw Technical Specification

PanelPro™ HP19 Hoarding Screw Technical Specification

PanelPro™ HP19 is a low-profile wafer head self-tapping ACM panel fixing screw engineered specifically for the installation of printed hoarding panels, graphic boards and temporary façade systems used across construction and commercial environments. See the full range of screws on the PanelPro™ HP19 hoarding screws page.

The fine-thread sharp point provides controlled penetration and consistent clamping performance without crushing panels or distorting printed surfaces, helping installers achieve a clean, professional finish across site hoardings and graphic installations. PanelPro™ HP19 screws are available in over 60 colour matched RAL finishes for printed hoarding panels.

PanelPro™ HP19 hoarding screws are specified by construction contractors, signage installers and fit-out teams when installing printed hoarding panels and ACM graphics to timber or light gauge steel frames.

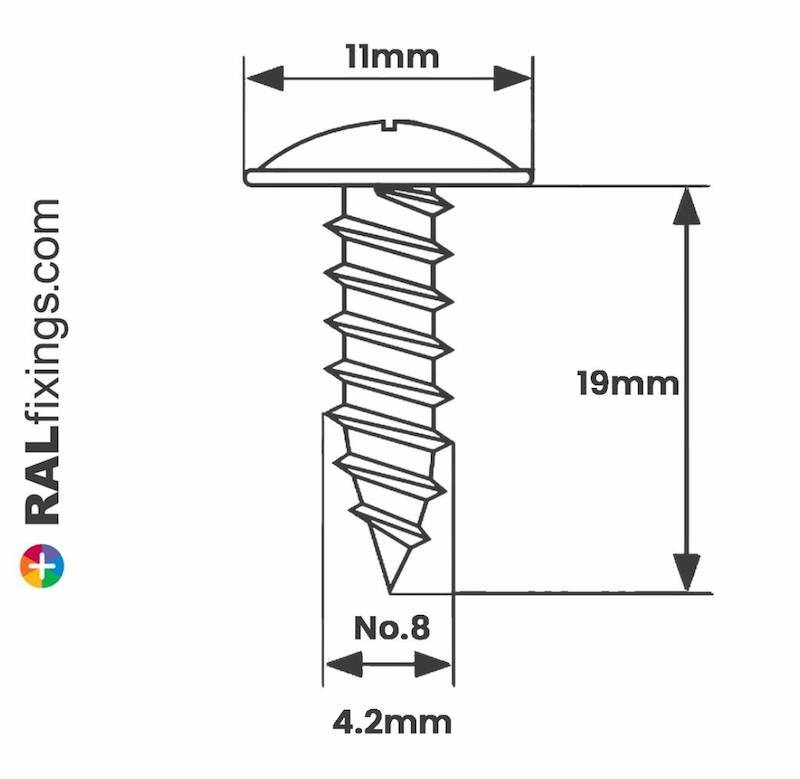

Technical specification

Intended applications

PanelPro™ HP19 screws are designed specifically for fixing graphic hoarding panels and printed boards to timber or light-gauge steel framing systems used on construction sites.

• Printed construction hoardings
• Graphic hoarding panels (ACM, Dibond®, Foamex®)
• Temporary façade systems
• Retail and commercial development hoardings
• Event and promotional installations
• Site perimeter graphics and branded hoarding

Substrate compatibility

PanelPro™ HP19 can be used to secure panels to a range of common hoarding frame materials.

• Timber hoarding frames (softwood and hardwood)
• Timber battens
• Light gauge steel framing (≤1.2mm recommended)
• Aluminium subframes (pre-drilling recommended)

Panel compatibility

• 3–6mm Aluminium Composite Material (ACM)
• 5–10mm Foamex / PVC boards
• Typical printed hoarding panel systems
• Temporary site graphics and façade boards

Installation guidance

• Use variable-speed driver with PH2 bit
• Avoid overdriving to prevent panel surface distortion
• Do not countersink
• Typical fixing centres: 300–450mm (subject to wind loading and panel size)
• Ensure framing is structurally adequate for panel loading
• Low-profile head minimises visible fixings

Corrosion & durability

PanelPro™ HP19 is manufactured from bright zinc plated (BZP) carbon steel and finished with a colour matched powder coated head. This dual-layer system provides enhanced corrosion resistance and improved long-term visual performance compared with uncoated zinc fixings.

• Corrosion resistance suitable for internal environments
• Improved protection at the exposed fixing head
• Reduced cosmetic staining on printed panels
• Suitable for temporary external hoarding installations

Fire & compliance

• Manufactured in accordance with EN 14566
• Euroclass A1 fire classification (non-combustible)
• Suitable for construction environments where fire performance is required

Colour availability

PanelPro™ HP19 screws are available in over 60 RAL colour-matched finishes to align with printed graphics, brand palettes and architectural requirements. Core colours are stocked for rapid dispatch with project colour runs available subject to quantity.

Packaging & supply

PanelPro™ HP19 screws are supplied in trade-ready boxes of:

• 200
• 500
• 1000
• 2000
• 5000

Each pack is clearly labelled by RAL colour and order number for easy site identification.

Suggested specification wording

Fixings for hoarding panels shall be PanelPro™ HP19 Low Profile Hoarding Screws, 19mm length, fine thread, EN 14566 compliant, Euroclass A1 rated, bright zinc plated carbon steel with colour matched powder coated head as required. Supplied by RALfixings Ltd.

Technical support

PanelPro™ is a proprietary hoarding fixing system supplied by RALfixings Ltd. Trade, project and specification support is available including:

• Project quantity calculations
• Colour matching guidance
• Core stock availability confirmation
• Trade account pricing

For technical support or specification assistance please contact info@ralfixings.com.
