PanelPro™ HP25 Hoarding Screw Technical Specification

PanelPro™ HP25 Hoarding Screw Technical Specification

PanelPro™ HP25 is a low-profile wafer head self-tapping ACM panel fixing screw engineered specifically for the installation of printed hoarding panels, graphic boards and temporary façade systems used across construction and commercial environments. It shares the same head profile, thread form and compliance credentials as the shorter PanelPro™ HP19, with a longer 25mm shank for deeper frame embedment and thicker panel build-ups. See the full range of screws on the PanelPro™ hoarding screws page.

The fine-thread sharp point provides controlled penetration and consistent clamping performance without crushing panels or distorting printed surfaces, helping installers achieve a clean, professional finish across site hoardings and graphic installations. PanelPro™ HP25 screws are available in over 40 colour matched RAL finishes for printed hoarding panels.

PanelPro™ HP25 hoarding screws are specified by construction contractors, signage installers and fit-out teams when installing printed hoarding panels and ACM graphics to timber or light gauge steel frames — particularly where a longer fixing is needed for thicker panels, battened frames or greater pull-out resistance.

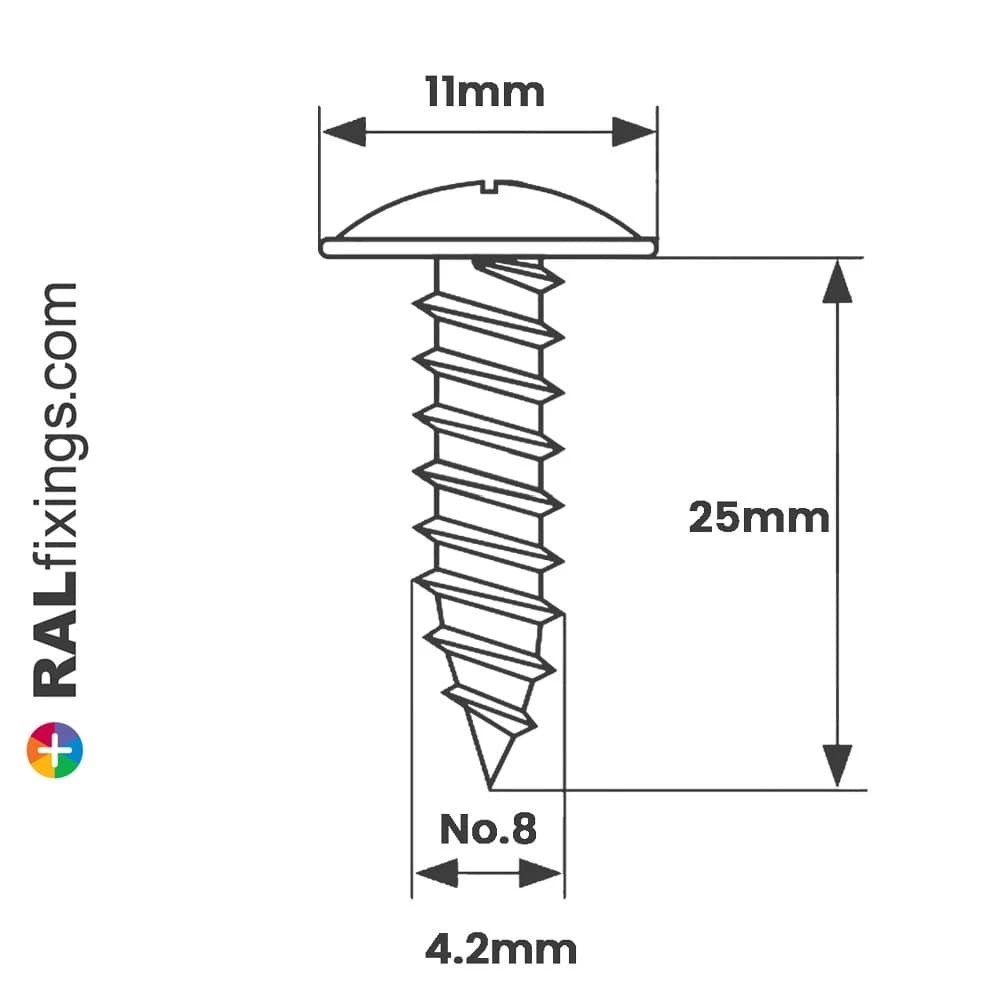

Technical specification

Intended applications

PanelPro™ HP25 screws are designed specifically for fixing graphic hoarding panels and printed boards to timber or light-gauge steel framing systems used on construction sites, where the longer shank gives added thread engagement.

• Printed construction hoardings
• Graphic hoarding panels (ACM, Dibond®, Foamex®)
• Temporary façade systems
• Retail and commercial development hoardings
• Event and promotional installations
• Site perimeter graphics and branded hoarding
• Battened or packed-out frames requiring deeper embedment

Choosing HP25 or HP19

HP25 and HP19 share identical head, thread and compliance credentials — the only difference is shank length. Choose based on your panel and frame build-up:

• HP19 (19mm) - standard choice for thin ACM and Foamex fixed directly to a solid timber or steel frame.
• HP25 (25mm) - where the extra 6mm of length is needed: thicker panels, battened or counter-battened frames, packed-out substrates, or applications wanting greater pull-out resistance and thread engagement.

Substrate compatibility

PanelPro™ HP25 can be used to secure panels to a range of common hoarding frame materials.

• Timber hoarding frames (softwood and hardwood)
• Timber battens
• Light gauge steel framing (≤1.2mm recommended)
• Aluminium subframes (pre-drilling recommended)

Panel compatibility

• 3–6mm Aluminium Composite Material (ACM)
• 5–10mm Foamex / PVC boards
• Thicker panel build-ups and battened installations
• Typical printed hoarding panel systems
• Temporary site graphics and façade boards

Installation guidance

• Use variable-speed driver with PH2 bit
• Avoid overdriving to prevent panel surface distortion
• Do not countersink
• Typical fixing centres: 300–450mm (subject to wind loading and panel size)
• Ensure framing is structurally adequate for panel loading
• Low-profile head minimises visible fixings

Corrosion & durability

PanelPro™ HP25 is manufactured from bright zinc plated (BZP) carbon steel and finished with a colour matched powder coated head. This dual-layer system provides enhanced corrosion resistance and improved long-term visual performance compared with uncoated zinc fixings.

• Corrosion resistance suitable for internal environments
• Improved protection at the exposed fixing head
• Reduced cosmetic staining on printed panels
• Suitable for temporary external hoarding installations

Fire & compliance

• Manufactured in accordance with EN 14566
• Euroclass A1 fire classification (non-combustible)
• Suitable for construction environments where fire performance is required

Colour availability

PanelPro™ HP25 screws are available in over 60 RAL colour-matched finishes to align with printed graphics, brand palettes and architectural requirements. Core colours are stocked for rapid dispatch with project colour runs available subject to quantity.

Suggested specification wording

Fixings for hoarding panels shall be PanelPro™ HP25 Low Profile Hoarding Screws, 25mm length, fine thread, EN 14566 compliant, Euroclass A1 rated, bright zinc plated carbon steel with colour matched powder coated head as required. Supplied by Pro Colour Group Ltd T/A RALfixings.

Technical support

PanelPro™ is a proprietary hoarding fixing system supplied by Pro Colour Group Ltd T/A RALfixings. Trade, project and specification support is available including:

• Project quantity calculations
• Colour matching guidance
• Core stock availability confirmation
• Trade account pricing

For technical support or specification assistance please contact info@ralfixings.com.
