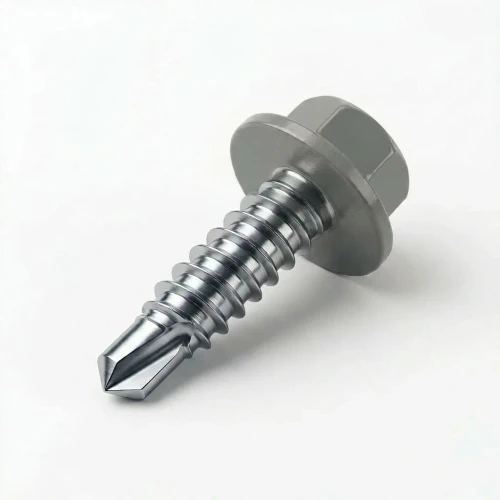

Description
Agate grey is a light, clean grey with a subtle warmth that places it in the architectural neutral family on steel. These 13mm x 4.2mm hex head self-drilling tek bolts in RAL 7038 Agate Grey are powder coated to match the pale, refined grey used across contemporary cladding rail systems, commercial structural steelwork and architectural metalwork where a light, sophisticated neutral has been specified on visible fixing points. A standard zinc or bright fixing on an agate grey steel structure reads as a cold, metallic mark against a tone chosen for its quiet refinement.
The self-drilling Tek point cuts directly into light-gauge steel up to 3.0mm thick without pre-drilling. The hex head washer face spreads clamping load across the steel substrate, and the 1/4" hex drive is compatible with standard impact drivers and hex socket nut runners.
These bolts are designed for steel-to-steel fixing applications only. For timber, plastic or composite panel substrates, the flange head self-tapping range is the correct specification.
RAL 7038 Agate Grey
RAL 7038 Agate Grey is a light, balanced grey with a slight warm undertone that keeps it from reading as cold or clinical on steel. It sits lighter than RAL 7035 Light Grey and considerably lighter than the dark greys, occupying the upper end of the mid-grey range where greys begin to feel open and airy on structural metalwork. On steel this colour appears on contemporary commercial and architectural cladding rail systems, high-specification structural frameworks and architectural steelwork where a light, composed grey is the brief. The slight warmth in agate grey is what separates it from a purely neutral light grey and makes fixing colour specification matter.
Each bolt head is powder coated to the exact RAL 7038 Classic standard. All RAL colours in the RALfixings range are held in stock for immediate dispatch without special order lead times.
Suitable Applications
13mm RAL 7038 Agate Grey hex head self-drilling tek bolts are used across:
- Contemporary architectural cladding rail systems and commercial steel framing in RAL 7038
- High-specification structural steelwork and architectural metalwork in agate grey
- Metal roofing sheets, flashings and roof structure connections in agate grey colour schemes
- HVAC ductwork, sheet metal fabrication and metal panel installations in RAL 7038
- Equipment housings and service steelwork specified in light architectural grey
Pack Sizes Available
Supplied in trade-ready packs of:
- 100
- 200
- 500
- 1000
- 2000
- 5000
Specification
| Length | 13mm |
| Thread Diameter | 4.2mm |
| Thread Size | 8 x 1/2" |
| Head Type | Hex Head Washer Faced |
| Drive | 1/4" Hex (6.35mm) |
| Point Type | Self-Drilling (Tek) |
| Material | Carbon Steel (Bright Zinc Plated) |
| Head Finish | Powder Coated RAL 7038 Agate Grey |
| Max Substrate Thickness | 3.0mm (light section steel) |
| Substrates | Steel, Sheet Metal |
Frequently Asked Questions
How does RAL 7038 Agate Grey differ from RAL 7035 Light Grey on steel structures?
RAL 7035 Light Grey is a cooler, more neutral light grey used as the standard light grey across industrial and commercial steel applications. RAL 7038 Agate Grey carries a slight warmth and a more refined, architectural character than the functional neutrality of 7035. If your steel structure reads as a light grey with a subtle warm quality rather than a cool or clinical tone, RAL 7038 is the correct specification.
Do these bolts require pre-drilling?
No. The self-drilling Tek point cuts its own hole and forms the thread as it is driven into the substrate, removing the need to pre-drill. These bolts are rated for light section steel up to 3.0mm thick. For substrates thicker than 3.0mm, a different fixing specification is required.
Can these be used on timber or plastic substrates?
No. These hex head self-drilling tek bolts are designed for steel-to-steel applications only. For timber, plastic or composite panel substrates, the RALfixings flange head self-tapping range is the correct product.
How quickly can you deliver?
RAL 7038 Agate Grey is held in stock. Most orders dispatch next working day on a tracked 24-hour service. Larger volume orders typically ship within 3 to 5 working days.
Powder Coated Screws
RALfixings exists to give contractors and specifiers access to colour-matched visible fixings without the compromise of bright zinc heads on exposed metalwork. Every fixing in the range is powder coated in-house to exact RAL Classic colour standards, with consistent batch-to-batch colour accuracy across every pack size.
The electrostatic powder coating process deposits a fine layer of thermoset pigment onto the bolt head, which is then cured under heat to form a hard, permanently bonded shell. This finish outperforms wet paint across every measurable category: adhesion, hardness, chip resistance, UV stability and colour consistency across production runs.
Benefits of powder coated hex head tek bolts:
- Scratch resistant
- Rust resistant
- UV resistant
- Weather resistant
- Colourfast
Other Colour Options
These 13mm x 4.2mm hex head self-drilling tek bolts are available in over 60 colour-matched RAL finishes for cladding, roofing and exposed steel metalwork.
Description
Agate grey is a light, clean grey with a subtle warmth that places it in the architectural neutral family on steel. These 13mm x 4.2mm hex head self-drilling tek bolts in RAL 7038 Agate Grey are powder coated to match the pale, refined grey used across contemporary cladding rail systems, commercial structural steelwork and architectural metalwork where a light, sophisticated neutral has been specified on visible fixing points. A standard zinc or bright fixing on an agate grey steel structure reads as a cold, metallic mark against a tone chosen for its quiet refinement.
The self-drilling Tek point cuts directly into light-gauge steel up to 3.0mm thick without pre-drilling. The hex head washer face spreads clamping load across the steel substrate, and the 1/4" hex drive is compatible with standard impact drivers and hex socket nut runners.
These bolts are designed for steel-to-steel fixing applications only. For timber, plastic or composite panel substrates, the flange head self-tapping range is the correct specification.
RAL 7038 Agate Grey
RAL 7038 Agate Grey is a light, balanced grey with a slight warm undertone that keeps it from reading as cold or clinical on steel. It sits lighter than RAL 7035 Light Grey and considerably lighter than the dark greys, occupying the upper end of the mid-grey range where greys begin to feel open and airy on structural metalwork. On steel this colour appears on contemporary commercial and architectural cladding rail systems, high-specification structural frameworks and architectural steelwork where a light, composed grey is the brief. The slight warmth in agate grey is what separates it from a purely neutral light grey and makes fixing colour specification matter.
Each bolt head is powder coated to the exact RAL 7038 Classic standard. All RAL colours in the RALfixings range are held in stock for immediate dispatch without special order lead times.
Suitable Applications
13mm RAL 7038 Agate Grey hex head self-drilling tek bolts are used across:
- Contemporary architectural cladding rail systems and commercial steel framing in RAL 7038
- High-specification structural steelwork and architectural metalwork in agate grey
- Metal roofing sheets, flashings and roof structure connections in agate grey colour schemes
- HVAC ductwork, sheet metal fabrication and metal panel installations in RAL 7038
- Equipment housings and service steelwork specified in light architectural grey
Pack Sizes Available
Supplied in trade-ready packs of:
- 100
- 200
- 500
- 1000
- 2000
- 5000
Specification
| Length | 13mm |
| Thread Diameter | 4.2mm |
| Thread Size | 8 x 1/2" |
| Head Type | Hex Head Washer Faced |
| Drive | 1/4" Hex (6.35mm) |
| Point Type | Self-Drilling (Tek) |
| Material | Carbon Steel (Bright Zinc Plated) |
| Head Finish | Powder Coated RAL 7038 Agate Grey |
| Max Substrate Thickness | 3.0mm (light section steel) |
| Substrates | Steel, Sheet Metal |
Frequently Asked Questions
How does RAL 7038 Agate Grey differ from RAL 7035 Light Grey on steel structures?
RAL 7035 Light Grey is a cooler, more neutral light grey used as the standard light grey across industrial and commercial steel applications. RAL 7038 Agate Grey carries a slight warmth and a more refined, architectural character than the functional neutrality of 7035. If your steel structure reads as a light grey with a subtle warm quality rather than a cool or clinical tone, RAL 7038 is the correct specification.
Do these bolts require pre-drilling?
No. The self-drilling Tek point cuts its own hole and forms the thread as it is driven into the substrate, removing the need to pre-drill. These bolts are rated for light section steel up to 3.0mm thick. For substrates thicker than 3.0mm, a different fixing specification is required.
Can these be used on timber or plastic substrates?
No. These hex head self-drilling tek bolts are designed for steel-to-steel applications only. For timber, plastic or composite panel substrates, the RALfixings flange head self-tapping range is the correct product.
How quickly can you deliver?
RAL 7038 Agate Grey is held in stock. Most orders dispatch next working day on a tracked 24-hour service. Larger volume orders typically ship within 3 to 5 working days.
Powder Coated Screws
RALfixings exists to give contractors and specifiers access to colour-matched visible fixings without the compromise of bright zinc heads on exposed metalwork. Every fixing in the range is powder coated in-house to exact RAL Classic colour standards, with consistent batch-to-batch colour accuracy across every pack size.
The electrostatic powder coating process deposits a fine layer of thermoset pigment onto the bolt head, which is then cured under heat to form a hard, permanently bonded shell. This finish outperforms wet paint across every measurable category: adhesion, hardness, chip resistance, UV stability and colour consistency across production runs.
Benefits of powder coated hex head tek bolts:
- Scratch resistant
- Rust resistant
- UV resistant
- Weather resistant
- Colourfast
Other Colour Options
These 13mm x 4.2mm hex head self-drilling tek bolts are available in over 60 colour-matched RAL finishes for cladding, roofing and exposed steel metalwork.
