PanelPro™ HP25-SD Self-Drilling Screws - 25mm - RAL 9016 Traffic White

(No reviews) Write a Review
Screw Length: 25mm
Thread Size: 4.2mm
Material: BZP Steel
Head Type: Wafer Head
Recess: Phillips PH2
Thread Type: Self Drilling
Colour: RAL 9016 Traffic White
colour_swatch: RAL 9016 Traffic White
tech_thread_type: Self Drilling (SD)
tech_head_style: Wafer Head
tech_drive_type: Phillips PH2
tech_length: 25mm
tech_diameter: 4.2mm
tech_material: BZP Steel
tech_coating: Premium powder coat
tech_ral_code: RAL 9016
tech_ral_name: Traffic White
tech_colour_system: RAL Classic
colour_count: 40
  • Guaranteed Colour Match

    Matched to RAL Classic colours

  • In-House Experts

    We know our products

  • Durable Finish

    Dual layer powder coating

  • Same-Day Despatch*

    Order before 12pm

* Same-day despatch applies to stocked items only. Contact us if you need your order sooner than the stated lead time. Product images are for illustration only and should not be relied on as an accurate colour match – request a physical sample for an exact match.

PanelPro™ HP25-SD Self-Drilling Screws - 25mm - RAL 9016 Traffic White
PanelPro™ HP25-SD Self-Drilling Screws - 25mm - RAL 9016 Traffic White
£0.14

Description

Finished in RAL 9016 Traffic White, the PanelPro™ HP25-SD self-drilling hoarding screw fixes panels directly to metal framework up to 3mm thick, replacing the sharp point of HP19 and HP25 with a drill point while keeping the same discreet colour-matched wafer head.

The self-drilling point removes the separate pilot-drilling step, speeding installation on steel and aluminium frames where HP19 and HP25 would need pre-drilling.

HP25-SD completes the PanelPro™ system alongside the PanelPro™ HP19 19mm hoarding screw in RAL 9016 Traffic White and the HP25 25mm screw - match the self-drilling point to metal frames and the self-tapping points to timber, all in the same RAL finish.

Drill at speed and ease off as the wafer head seats to avoid stripping the metal thread, and brush away swarf immediately to protect the powder-coated finish. Maximum metal thickness 3mm - pre-drill thicker sections.

Colour-Matched for a Professional Finish

RAL 9016 Traffic White is a crisp neutral white, the best-selling white for panels and hoardings. Matching the fixing head to the panel keeps large runs looking uniform and hides the fixings against the graphic.

PanelPro™ HP25-SD is available in 40 colour-matched RAL finishes, held in stock for rapid dispatch so contractors and procurement teams can source consistent fixings across full and multi-site installations.

Designed for Site Efficiency

PanelPro™ HP25-SD is suitable for:

  • Panels fixed to steel and aluminium hoarding frames
  • Steel track and stud stitching (drywall / MF ceilings)
  • ACM / Dibond® composite panels on metal carriers
  • Aluminium sub-frames and steel box frames (no pre-drill)
  • Sheet metal fixing up to 3mm (MDT 3.0mm)

Typical fixing centres: 300mm - 450mm (subject to panel size and wind loading).

Specification

Length 25mm
Thread Diameter 4.2mm
Head Type Low Profile Wafer Head
Head Diameter 11mm
Thread Type Self-Tapping
Point Type Self-Drilling
Max Drilling Thickness 3.0mm
Substrate Thin Sheet Metal
Recess Phillips PH2
Material Carbon Steel (Zinc Plated)
Head Finish Powder Coated RAL 9016 Traffic White
Standard BS EN 14566 / BS EN 10666
Reaction to Fire Euroclass A1

For full dimensions, installation guidance and compliance information see the PanelPro™ HP25-SD technical specification.

Frequently Asked Questions

Do I need to pre-drill with these self-drilling screws?

No. PanelPro™ HP25-SD drills its own hole and forms the thread in one pass through sheet metal up to 3mm. Beyond 3mm, pre-drill the section first.

What can these fix panels into?

Metal framework - proprietary steel and aluminium hoarding systems, steel track and stud, aluminium sub-frames and box frames - up to 3mm thick. For timber frames, use the self-tapping HP19 or HP25 instead.

Do these match printed panel colours?

Yes. The powder-coated wafer head is colour matched to industry-standard RAL 9016 Traffic White so fixings sit discreetly against printed graphics.

What are the delivery and lead times?

We hold stock across all 40 colours for quick next-day despatch on a tracked 24 service. Bulk or bespoke colour orders usually take around 3 - 5 working days.

Powder Coated Screws

Colour-matched fixings only work if the colour is right and lasts. That is why we powder coat all our coloured hoarding screws in-house to exact RAL specifications.

Powder coating electrostatically applies coloured powder to the fixing before curing it at high temperature, creating a hard, uniform layer that significantly outperforms painted finishes - durable, colourfast and built for site.

Benefits of powder coated self-drilling screws:

  • Scratch resistant
  • Rust resistant
  • UV resistant
  • Weather resistant
  • Colourfast

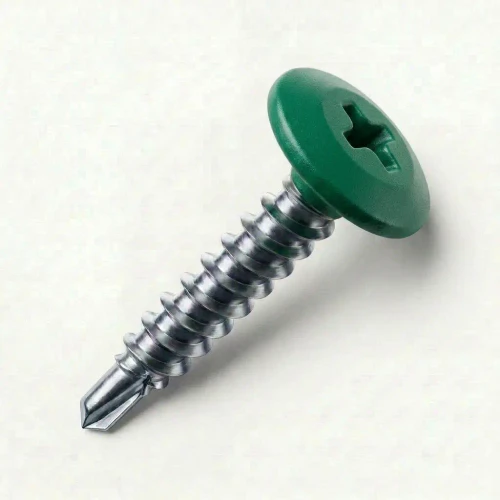

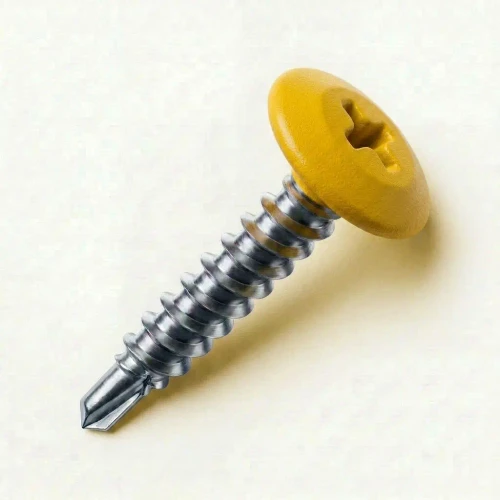

Other PanelPro™ HP25-SD Colour Options

PanelPro™ self-drilling hoarding screws are available in 40 colour-matched RAL finishes to align with printed hoarding graphics and panel systems.

Also in the PanelPro™ Range

Match the point type to the frame and the length to the build-up:

tech_thread_type Self Drilling (SD)
tech_head_style Wafer Head
tech_drive_type Phillips PH2
tech_length 25mm
tech_diameter 4.2mm
tech_material BZP Steel
tech_coating Premium powder coat
tech_ral_code RAL 9016
tech_ral_name Traffic White
tech_colour_system RAL Classic

Recommended applications

The self-drilling member of the PanelPro™ range, engineered for fixing printed hoarding panels, ACM graphic boards and composite panels directly to metal framework. The self-drilling point bores its own hole and forms the thread in a single pass through sheet metal up to 3mm - no pre-drilling - while the low-profile colour-matched wafer head keeps fixings discreet against printed graphics.

Ideal where hoarding uses proprietary steel or aluminium frames rather than timber, and for stitching light-gauge metal track and stud. Drill at speed and ease off as the head seats; brush away swarf immediately to protect the powder-coated finish. Use with a variable-speed driver and PH2 bit.

Maximum metal thickness 3mm - pre-drill thicker sections. For fixing to timber frames, use PanelPro™ HP19 or HP25 self-tapping screws.

Suitable for

Metal-Framed HoardingsProprietary steel & aluminium hoarding systems and sub-frames
Steel Track & StudDrywall and MF ceiling track stitching, exposed metal detailing
ACM & Composite PanelsDibond® and aluminium composite fixed to metal carriers
Aluminium & Box FramesThin aluminium sections and steel box frames - no pilot hole
Sheet Metal ≤3mmLight-gauge steel and sheet metal within 3mm (MDT 3.0mm)
