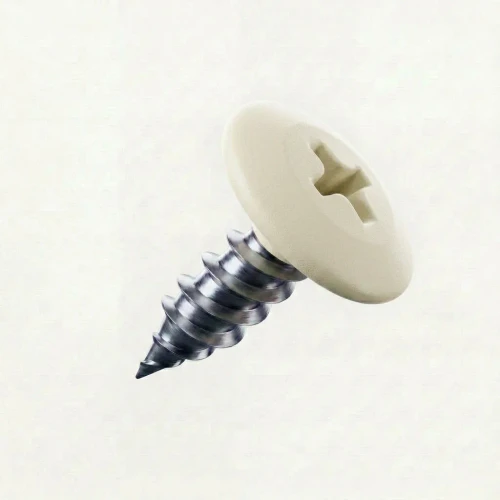

RAL 1013 Oyster White - 13mm x 4.2mm Painted Wafer Head Self Drilling Screws - BZP Steel
Available in 40 colours
Our powder coated 16mm × 4.2mm wafer head self drilling screws are the shortest stitching length in the range, built for stitching drywall and ceiling track systems, thin sheet metal and light framing. Engineered for professional trade use, these screws deliver excellent pull-up, clean penetration and a discreet, flush finished appearance, all without the need for pre-drilling.
The integrated self-drilling point is capable of penetrating steel up to 3.0mm, making this size ideal for stitching track, folded steel, thin sheet and aluminium sections. At 16mm it is the lowest-profile option in the range, giving enough thread engagement to hold light-gauge steel securely while leaving the least protrusion behind the substrate, and the 4.2mm thread offers a balanced combination of holding strength and ease of installation.
The wafer low-profile head distributes load across a wider surface area than traditional pan or countersunk heads, reducing the risk of pull-through on thin materials and helping the fixing sit flatter against the finished surface. This makes the 16mm wafer head self driller a go-to choice for signage systems, hoarding panels, framing, ducting, cable containment and light cladding applications where appearance and performance matter equally.
All screws are powder coated to order in any RAL Classic colour, allowing installers, fabricators and contractors to colour-match fixings to panels, trims, graphics or corporate branding, delivering a cleaner, more professional finished installation.
RAL 1013 Oyster White is a soft off-white with warm undertones, widely used on light cladding and interior fit-outs. On 16mm wafer head self-drillers, it creates a clean, discreet fixing that sits neatly against visible surfaces.
These 16mm powder coated wafer head self drilling screws are widely used by signage installers, hoarding contractors, steel framers, shop fitters, M&E installers and fabricators who require a dependable fixing for light-to-medium duty applications where aesthetics are still important.
Compared to longer 19mm and 25mm fixings, the 16mm is the shortest stitching length in the range – the flattest profile and the least protrusion behind the substrate, ideal for drywall and ceiling track systems and thin sheet stitching where reach beyond the steel is unwanted. The slimmer 4.2mm diameter allows for faster driving, reduced material stress and cleaner results in thin substrates, particularly useful when installing at speed or close to panel edges.
Our precision powder-coating process fuses colour at high temperature, producing a hard-wearing, corrosion-resistant finish that stands up to outdoor exposure, repeated handling and long-term use on site.
They’re the go-to length for stitching drywall and ceiling track systems, joining metal stud to track, and stitching overlapping sheet metal and ductwork – anywhere a flush, low-profile head and the least possible protrusion behind thin steel matter most. At 16mm the shank stays clear of anything mounted behind the track.
The self-drilling point is designed to drill and tap steel up to 3.0mm thick, as well as aluminium and other light-gauge metals, without the need for a pilot hole.
Choose 16mm when you’re stitching thin track or sheet that sits tight to the steel and you want the shortest, flattest fixing that still bites securely – drywall and ceiling track, sheet stitching, ductwork. Step up to 19mm or 25mm where layered materials, insulation backing or deeper sections put the steel further from the head. The 4.2mm diameter drives quicker with less material stress than heavier 4.8mm screws.
Yes. We powder coat these screws to any RAL Classic colour, with fast turnaround and bulk discounts available for trade and large-scale projects.
Here at RALfixings, we believe it’s the small details that elevate a professional installation. That’s why we powder coat all our coloured wafer head screws in-house to exact RAL specifications.
Powder coating involves electrostatically applying coloured powder to the fixing before curing it at high temperature, creating a tough, uniform finish that outperforms traditional painted coatings. The result is a durable, colourfast surface designed to withstand site handling and long-term exposure.
| tech_thread_type | Self Drilling (SD) |
|---|---|
| tech_head_style | Wafer Head |
| tech_drive_type | Phillips PH2 |
| tech_length | 16mm |
| tech_diameter | 4.2mm |
| tech_gauge | #8 |
| tech_point_type | Self-drilling drill point |
| tech_steel_capacity | Up to 3.0mm light gauge steel |
| tech_material | BZP Steel |
| tech_coating | Premium powder coat |
| tech_ral_code | RAL 1013 |
| tech_ral_name | Oyster White |
| tech_colour_system | RAL Classic |
Engineered for stitching light-gauge metal framing systems and fixing thin sheet metal without pre-drilling. The self-drilling point cuts its own hole through steel up to 3.0mm, while the wide, low-profile wafer head spreads clamping load and sits flush so it will not foul boards, panels or moving parts fitted over it.
Widely used by drylining and partition contractors for joining metal stud to track before boarding, and by signage and fit-out teams fixing panels directly to steel subframes. Drive with a variable-speed driver and a PH2 bit; let the drill point do the work and avoid overdriving, which can strip the thread in thin gauge steel.
For fixing into timber or pre-drilled substrates where a drill point is not required, see the wafer head self-tapping range.
