Description
A 50mm x 5.5mm hex head self-drilling roofing screw, powder coated in RAL 9010 Pure White across both the head and the bonded EPDM washer. The RoofingPro™ RS50 fixes metal roofing and cladding sheets to steel framing without pre-drilling.
The 16mm EPDM washer compresses under the hex head as the screw seats, forming a permanent weather seal around the fixing hole. That seal is what keeps a metal roof watertight for its design life, and it is the part most often overlooked when a fixing is chosen on price.
Driven with an 8mm socket at high torque without cam-out, the hex drive suits repetitive overhead and rope-access work where a recessed drive would slip and round.
Supplied by the unit with quantity breaks, so a small repair batch and a full roof order come from the same listing.
Colour Matched in RAL 9010 Pure White
The RS50 in RAL 9010 Pure White is finished in a soft slightly warm white, powder coated across the hex head and the EPDM washer together.
Pure white is the standard interior and soffit finish across insulated panel systems, and appears widely on food production units, cold stores, warehousing and light industrial envelopes where a clean, bright surface is required.
RAL 9010 is the white specified when a warmer, softer tone is wanted rather than a stark commercial white. It is regularly paired with grey or silver profiles as the underside and trim colour.
Part of the six-colour RoofingPro core range held in stock, with a wider RAL palette available to order for matched schemes.
Site Applications
Specified across metal envelope work where the fixing is visible and the seal matters:
- Fixing profiled metal roofing sheets to steel purlins on industrial and commercial buildings
- Securing box profile and corrugated cladding to steel sheeting rails
- Agricultural roofing and barn cladding onto portal frame steelwork
- Fixing flashings, ridge caps, barge boards and eaves trims
- Insulated panel and composite sheet fixing where a deeper build-up needs the extra length
Typical fixing centres: 300mm - 500mm at sheet ends and 500mm - 1000mm at intermediate purlins (subject to sheet profile and wind loading).
Specification
Manufactured to the following specification:
| Size | 5.5mm x 50mm |
| Head Type | Hex |
| Socket Size | 8mm |
| Point Type | Self-Drilling No.3 |
| Thread Type | 60° Self-Tapping |
| Effective Thread Length | 35mm |
| EPDM Washer | 16mm |
| FW Ø | 11mm |
| Max Drilling Thickness | 5mm |
| Material | Case & Core Hardened Carbon Steel |
| Substrate | Steel |
| Shank Finish | Bright Zinc Plated |
| Head & Washer Finish | Powder Coated |
| Colour | RAL 9010 Pure White |
Frequently Asked Questions
What size socket fits the hex head?
8mm. Use a nut setter in a variable-speed driver and stop as soon as the EPDM washer has compressed evenly around the head.
Will these fix through insulation?
The 50mm length gives 35mm of effective thread, which suits deeper profiles and modest insulated build-ups. For thicker composite panels use the 70mm.
Is the washer really coated, or just the head?
Both. The hex head and the bonded EPDM washer are powder coated together in RAL 9010 Pure White, so there is no black rubber ring showing under a coloured head.
Can they be used on timber purlins?
No. The self-drilling point is designed for steel. For timber substrates you need a self-tapping fixing with a coarser thread profile.
Powder Coated Roofing Screws
RALfixings specialises in colour-matched visible fixings. Every RoofingPro screw is powder coated in-house, which lets us hold a genuine RAL match rather than an approximation, and lets us coat the EPDM washer as well as the head.
Powder coating is applied electrostatically as a dry powder and then cured, forming a bonded finish rather than a surface film. It will not chip off the hex flats under a socket the way wet paint does, and it holds colour through UV exposure far longer than a sprayed finish.
Benefits of powder coated roofing screws:
- Scratch resistant
- Rust resistant
- UV resistant
- Weather resistant
- Colourfast

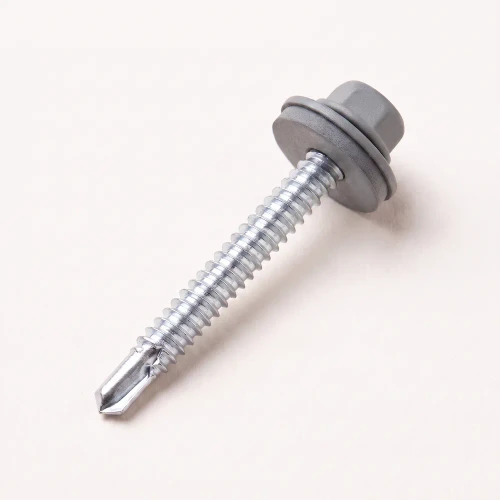

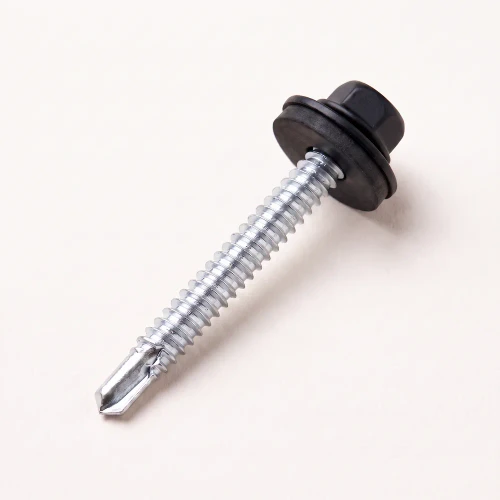

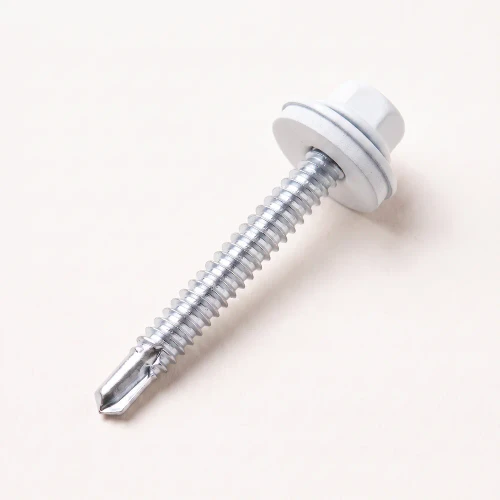

Other RoofingPro RS50 Colour Options
RoofingPro™ RS50 roofing screws are stocked in six core RAL finishes matched to the most widely specified roofing and cladding colours, with further RAL references powder coated to order.
